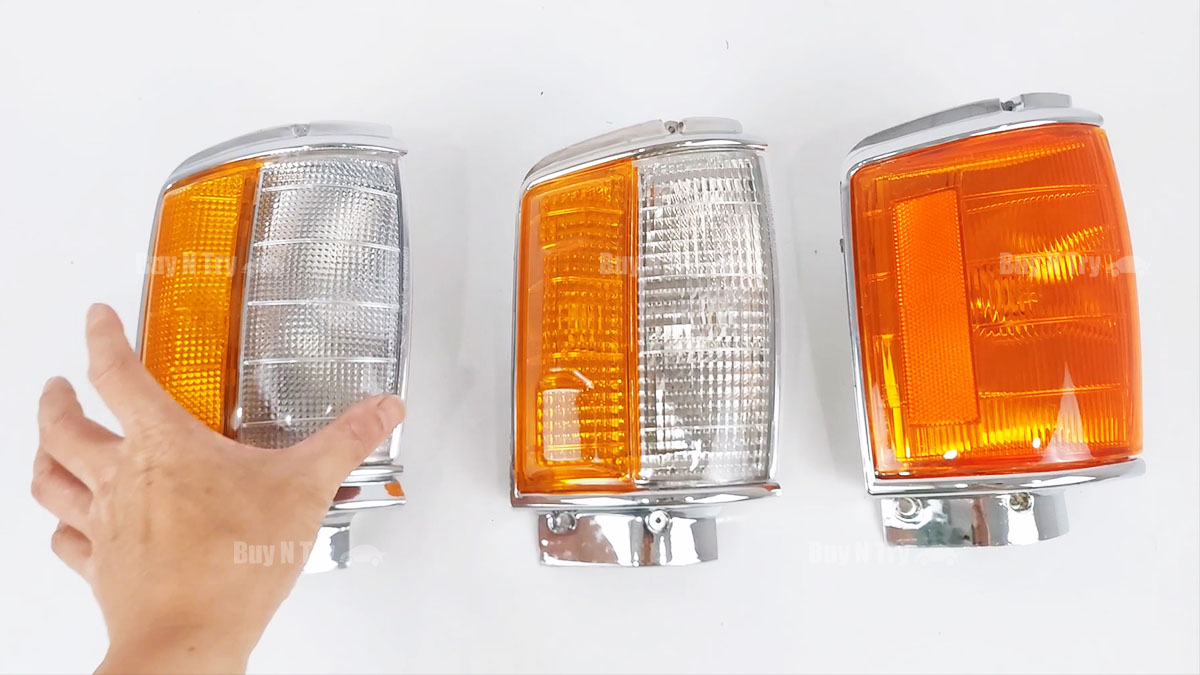

Details between TOYOTA PICKUP/HILUX 1984-1988 4X2 4X4 Corner Lights-1

Buyers frequently ask whether the corner lights for the 1984–1988 TOYOTA HILUX and PICKUP models are interchangeable. Interestingly, some HILUX owners wish to convert their vehicles to a PICKUP appearance, while PICKUP owners often want to achieve a HILUX look.

To address this common question, we have prepared a detailed comparison using three different corner light assemblies to provide a clear and comprehensive answer.

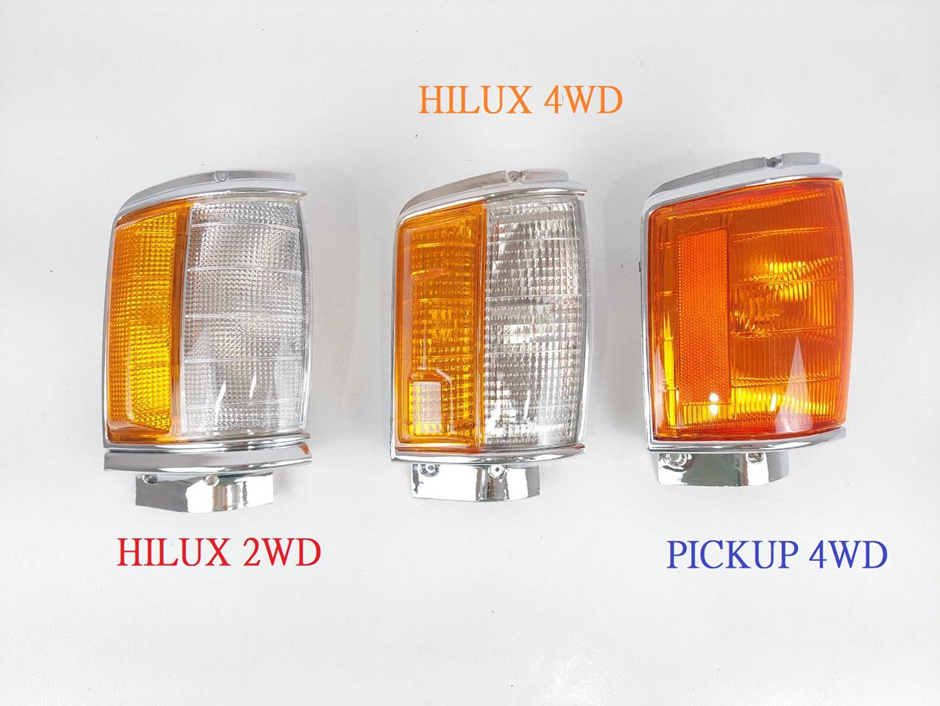

HILUX 2WD

OEM Number: 81620-89158 ; 81610-89158

HILUX 4WD

OEM Number: 81620-89153 ; 81610-89153

PICKUP 4WD

OEM Number: 81620-89145 ; 81610-89145

All part numbers listed above refer to chrome versions. Due to multiple facelifts and variations across these models, there are numerous finishes and additional part numbers which are not exhaustively listed here.

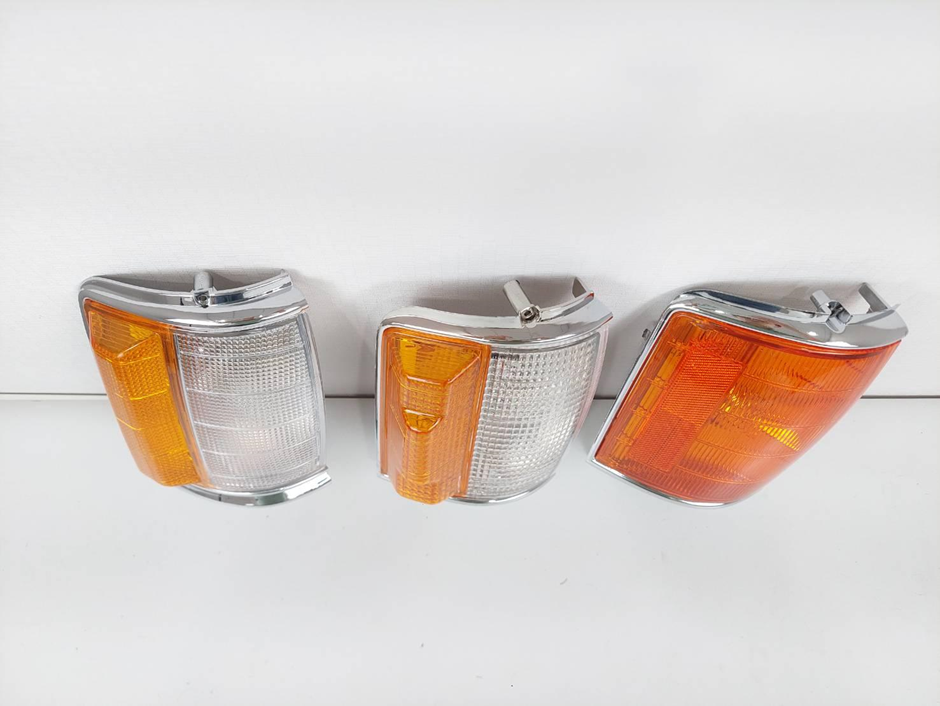

Upper Section Comparison

Although there are slight differences in the length of the mounting holes, these variations do not affect installation. The differences are primarily related to the curvature of the lens rather than fitment compatibility.

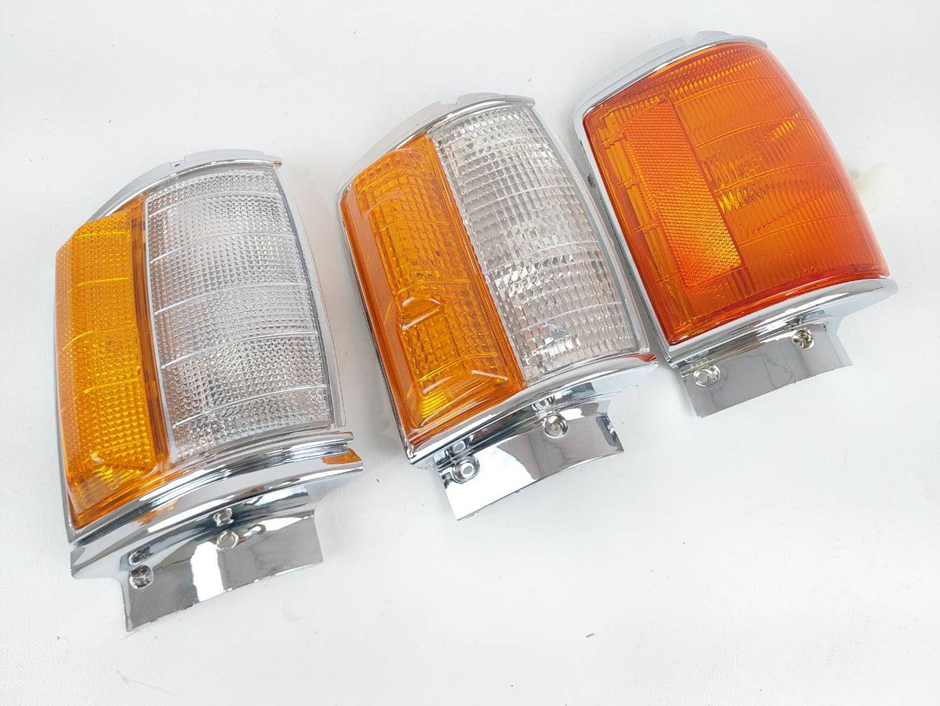

Lower Section Comparison

The most noticeable difference lies in the lower section:

• The HILUX 2WD appears wider.
• The HILUX 4WD and PICKUP 4WD have similar widths.

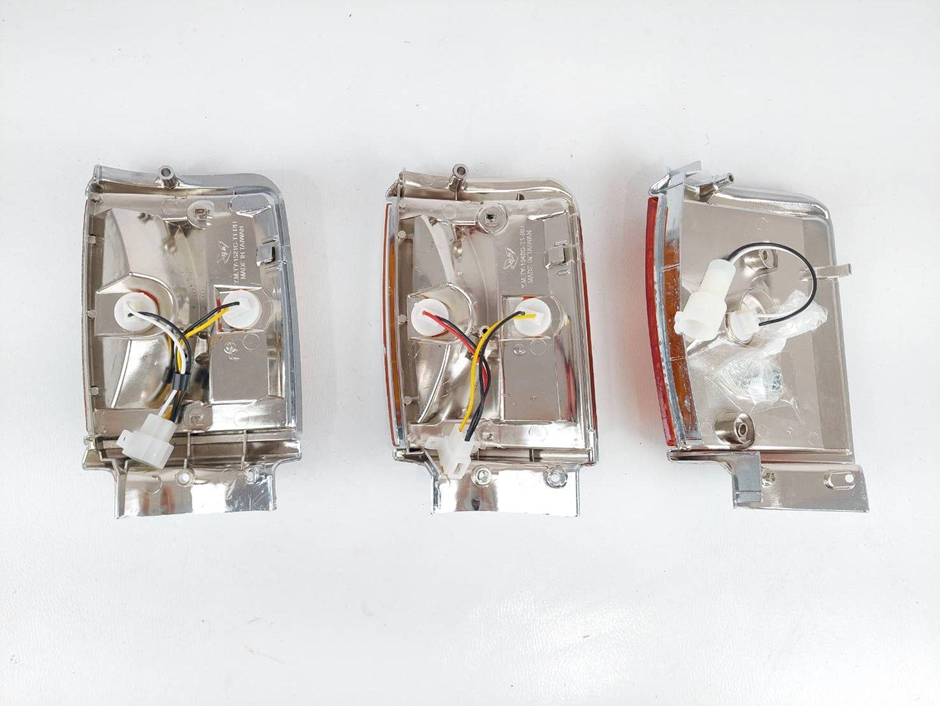

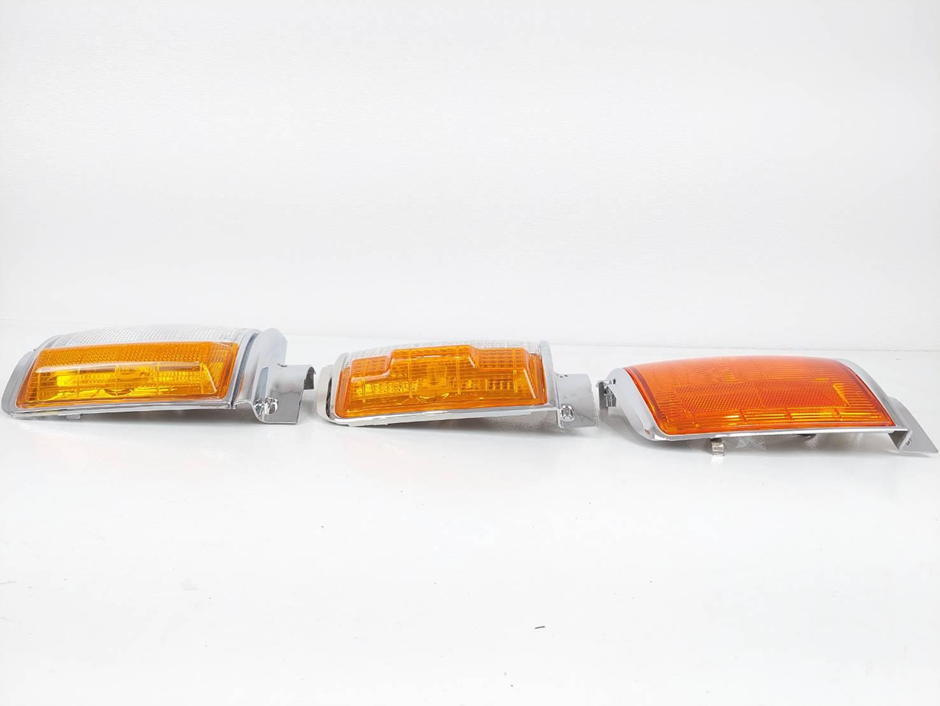

This distinction becomes even more apparent when viewed from the rear side.

Additionally:

• The HILUX series utilizes two bulbs,
• while the PICKUP uses a single bulb.

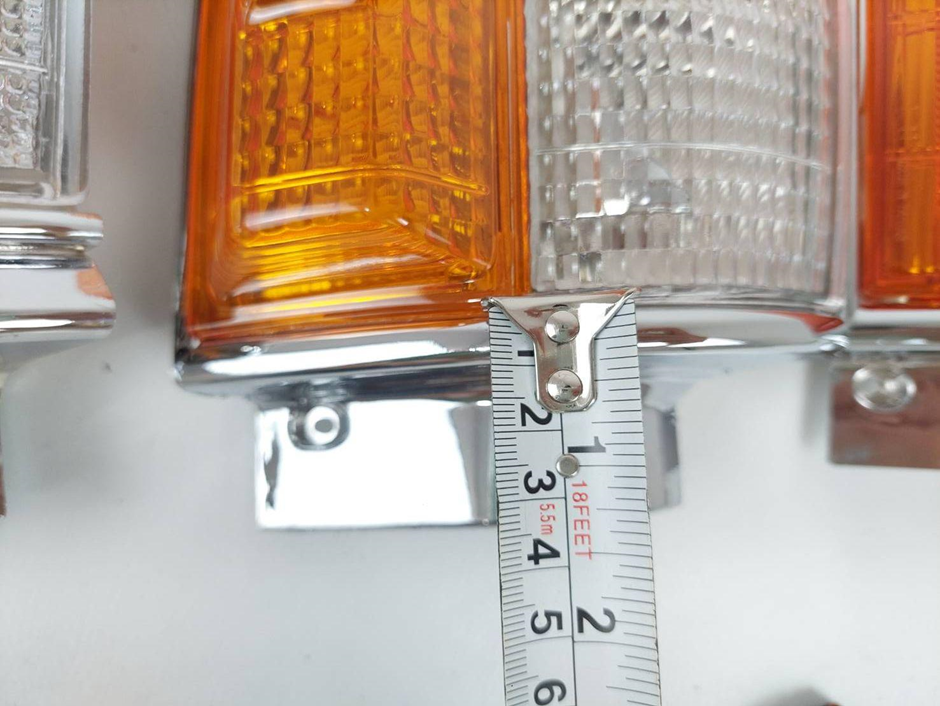

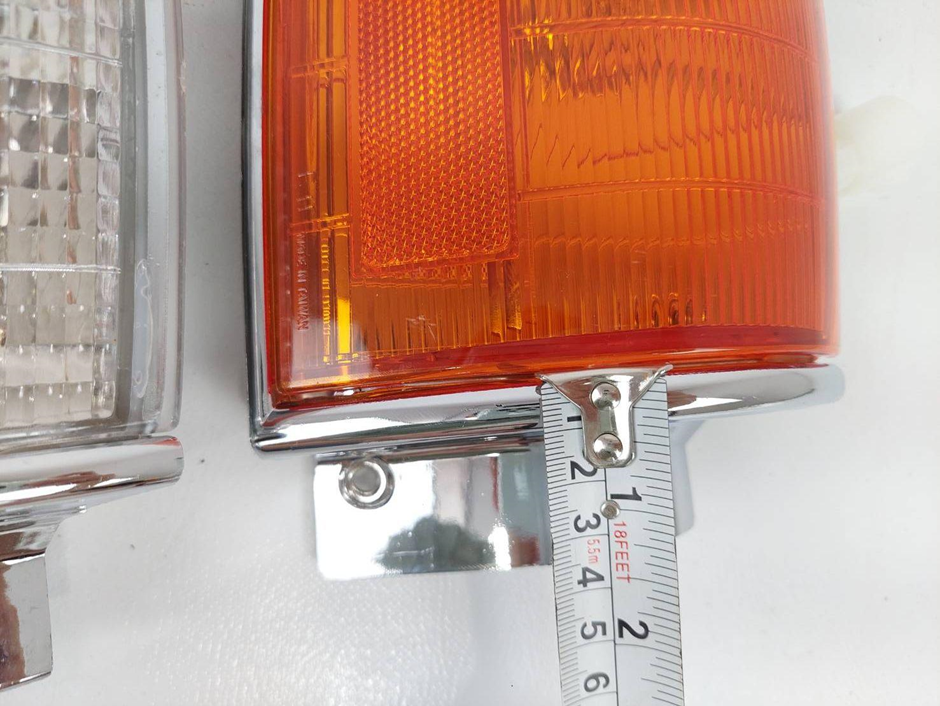

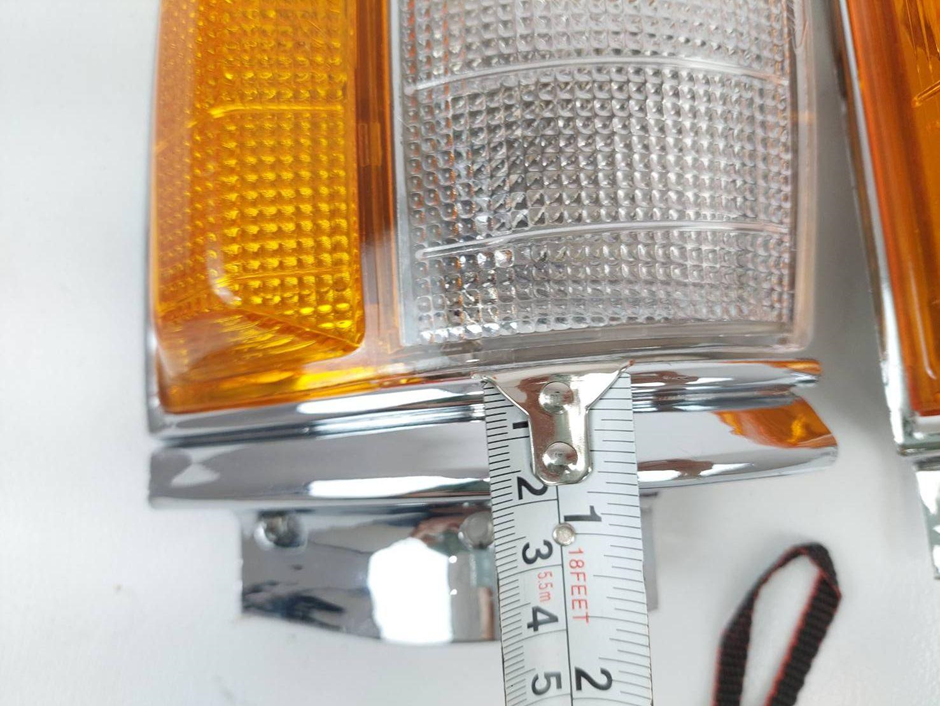

Approximate measurements:

• HILUX 2WD lower width: ~2 cm
• HILUX 4WD & PICKUP 4WD lower width: ~1 cm

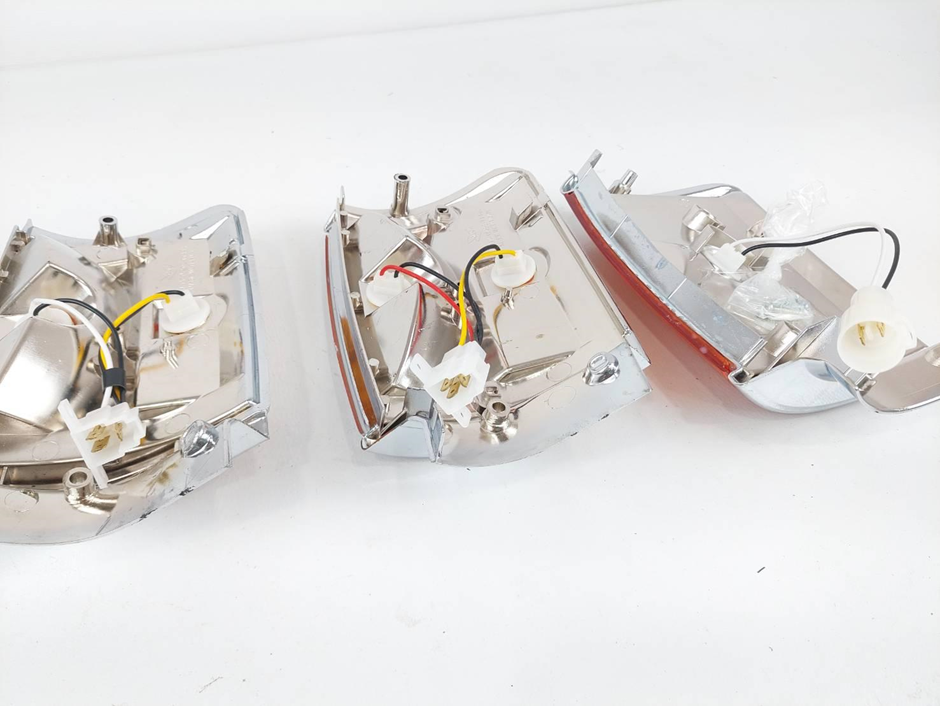

Connector Differences

• HILUX models: Square 3-pin connector
• PICKUP models: Round 2-pin connector

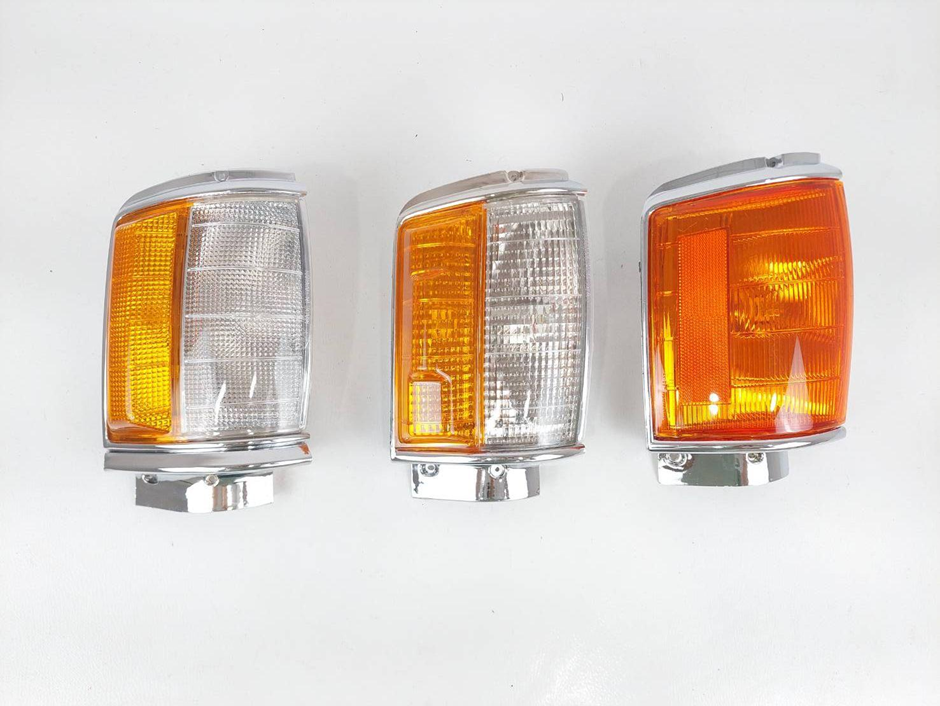

Lens Design Differences

• The HILUX 2WD and 4WD lenses differ not only in size but also in the raised contour design.
• The amber/clear combination sections feature distinct textures depending on the model.
• The PICKUP 4WD lens is fully amber.

A key distinguishing feature:

• The PICKUP lens includes a side reflector, located on the left side of the lens.
• The HILUX does not include this reflector, as it was added specifically to comply with U.S. regulations.

All of them can be switched no matter from 2WD to 4WD or 4WD to 2WD. It works. If you want to have another look. It’s easy to DIY.

Interchangeability & Installation

All versions can be interchanged between 2WD and 4WD models. Functional compatibility is not an issue.

For connector differences:

The original vehicle connector can be removed and replaced accordingly.

The wiring harness can be retained.

Any unused bulb sockets can simply be left uninstalled to achieve proper operation with a single bulb configuration.

This makes the conversion process straightforward and suitable for DIY installation.
